4 Post Car Parking Elevator | Car Lift For Garage

Product Details

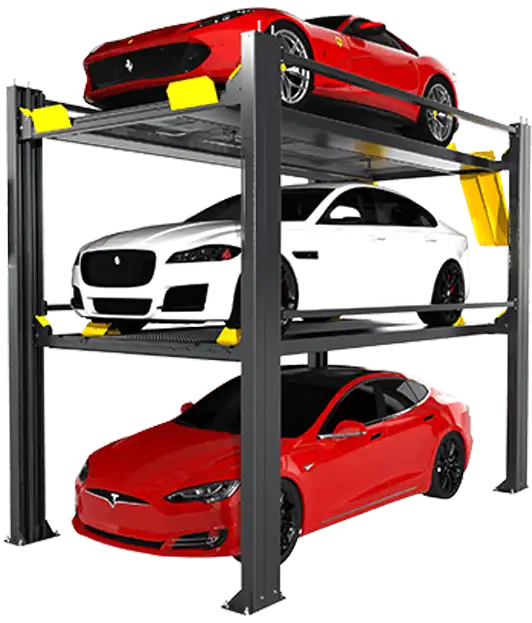

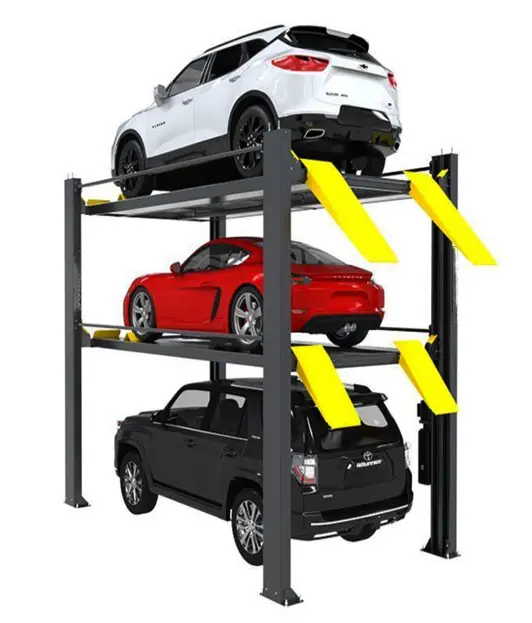

4 post car parking lift

Feature	Technical Detail
Function	Vertical vehicle stacking + maintenance access
Capacity	5,000–18,000 kg (11,000–40,000 lbs)
Platform Size	5.2m L × 2.4m W (Customizable up to 7m L)
Lift Height	1.85–3.65m (6–12 ft)
Operation	Synchronized hydraulic lift + auto-locking ramps
Power	220V/380V, 50/60Hz
Safety	Laser alignment, dual electromagnetic brakes, auto wheel chocks
Certifications	ASME A17.8, EN 1493, ALI/ETL

Space Optimization
- Stores 3–4 vehicles vertically in a single garage bay.
- Minimal footprint: 5.4m × 3.2m (fits standard garages).
Dual-Use Design
- Parking: Locking ramps prevent roll-away.
- Maintenance: Full undercarriage access (add sliding jack trays).
Robust Construction
- 12mm reinforced steel columns + cross-bracing (200% overload safety).
- Slip-resistant diamond grating.
Smart Operation
- RFID/mobile app control.
- Regenerative descent (25% energy recovery).

Parameter	Requirement
Ceiling Height	Min. 3.5m (single-stack), 5.1m (double-stack)
Floor Strength	200mm reinforced concrete (3,500 PSI)
Installation	Bolt-down (no pit); 8–12 hours
Clearance	30cm side/rear clearance

Use Case	Benefit
Home Garages	Store classic car collections + daily drivers
Auto Dealers	8x showroom density vs. flat parking
Repair Shops	Create overhead storage + service bays
Car Enthusiasts	Secure parking for modified/tall vehicles (up to 2.8m height)
